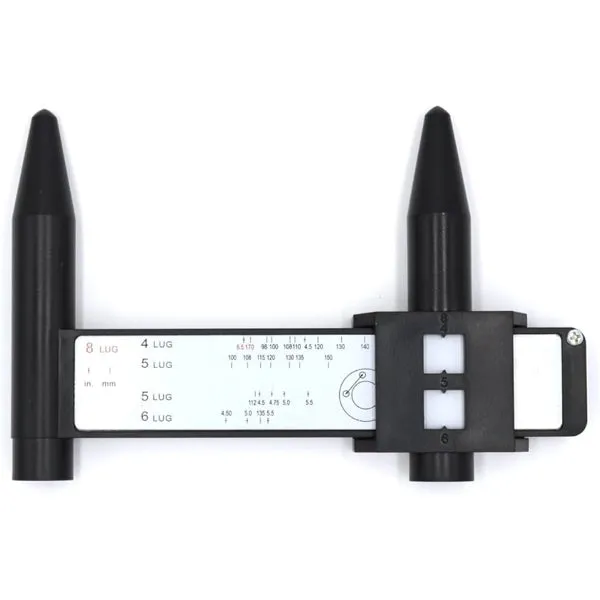

Description:

The PCD Gauge is an essential tool for accurately measuring the Pitch Circle Diameter (PCD) of steel and aluminum rims. Designed to accommodate a wide range of stud configurations, this gauge is suitable for 4, 5, 6, and 8 stud rims, making it a versatile addition to any automotive workshop. It simplifies the process of identifying the correct bolt pattern for various rims, ensuring a precise fit for your vehicle's wheels. Whether you're a professional mechanic or a dedicated DIYer, this gauge helps you achieve accuracy in wheel fitting and maintenance.

Key Features:

• Versatile Compatibility: Suitable for measuring PCD on 4, 5, 6, and 8 stud rims, making it adaptable to a variety of wheel configurations.
• Comprehensive Measurement Range: Covers a wide range of sizes for each stud configuration, including 98-140mm for 4 stud, 100-150mm for 5 stud, 135mm for 6 stud, and 170mm for 8 stud.
• Precision Measurement: Ensures accurate PCD measurements, crucial for proper wheel alignment and fitting.
• Durable Construction: Made from high-quality materials to withstand regular use in automotive settings.
• Easy to Use: Designed for simplicity and efficiency, facilitating quick and accurate measurements.

Technical Information:

• 4 Stud Rims: Measures 98mm, 100mm, 108mm, 110mm, 120mm, 130mm, 140mm, and 4.5 inches.
• 5 Stud Rims: Measures 100mm, 108mm, 112mm, 115mm, 120mm, 130mm, 135mm, 150mm, 4.5 inches, 4.75 inches, 5.0 inches, and 5.5 inches.
• 6 Stud Rims: Measures 135mm, 4.5 inches, 5.0 inches, and 5.5 inches.
• 8 Stud Rims: Measures 170mm and 6.5 inches.
• Material: High-quality construction for durability and accuracy.
